Flow Rates and Spray Pattern

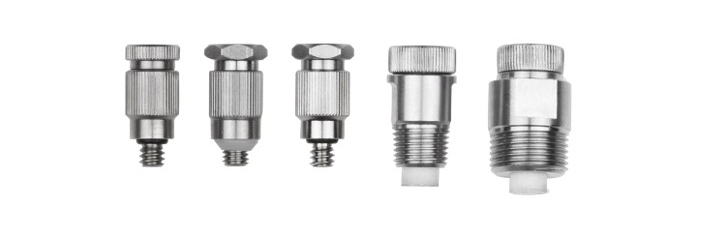

Fog nozzle is the key point of a High-pressure fogging system.

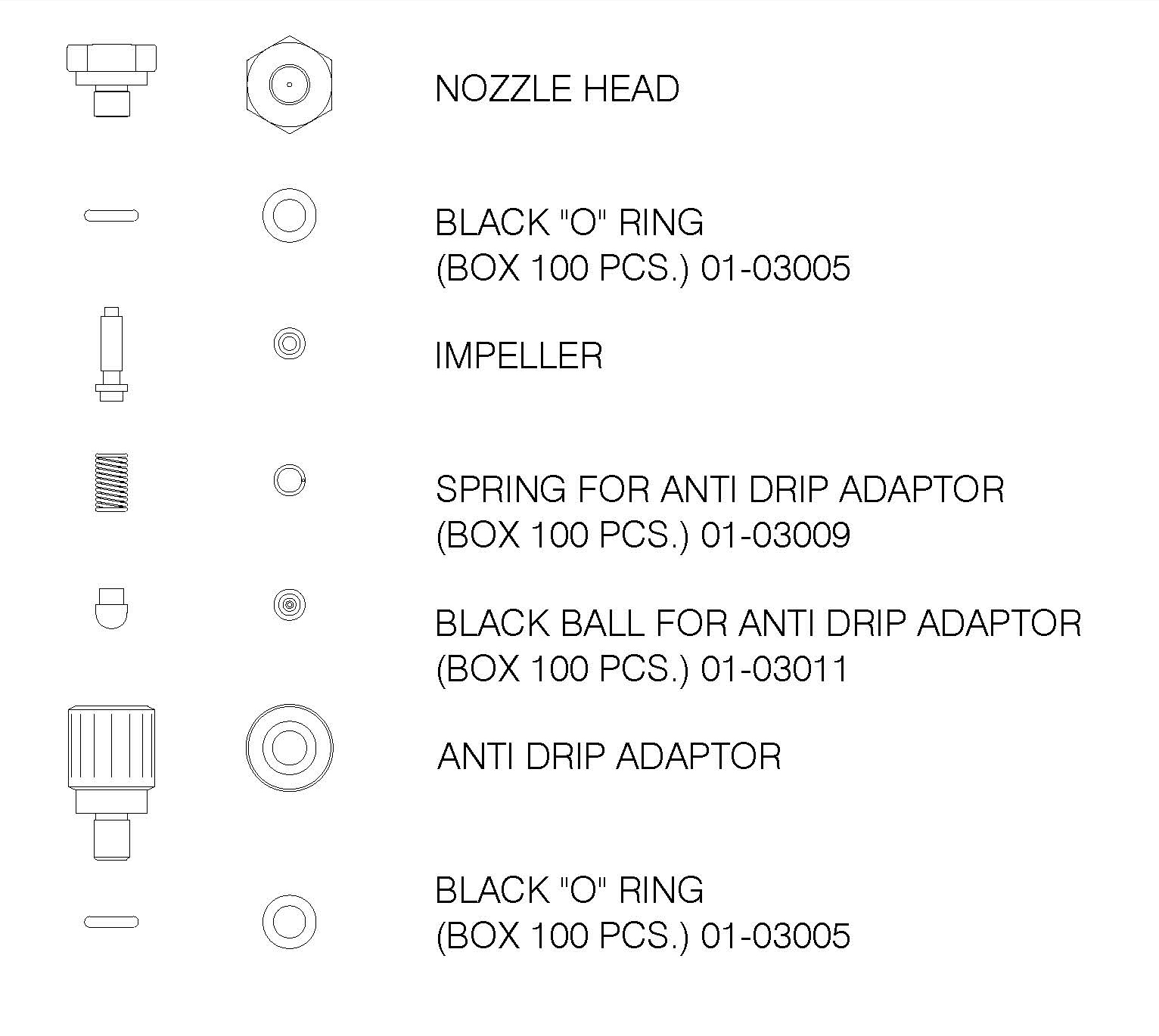

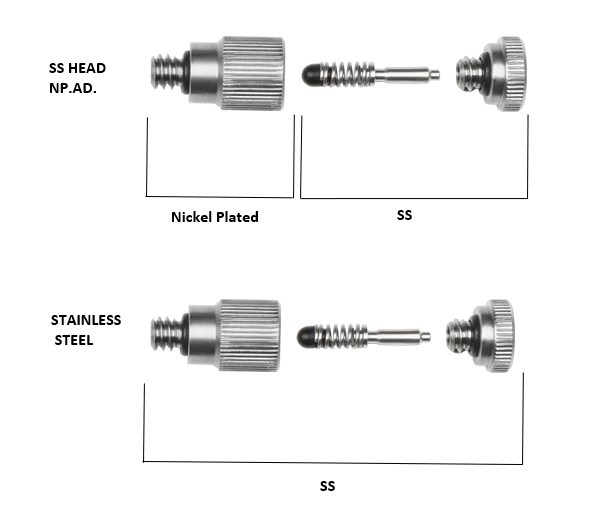

Durability, spray angle, flow rate, anti-drip spees and precise manufacturing are the important points of producing a high-pressure fog Nozzle.

Thanks to our latest technology cnc lathes that we are capable to produce best nozzles with ultra-fıne droplets.

We test and quality check our nozzles after production.


Flow Rates

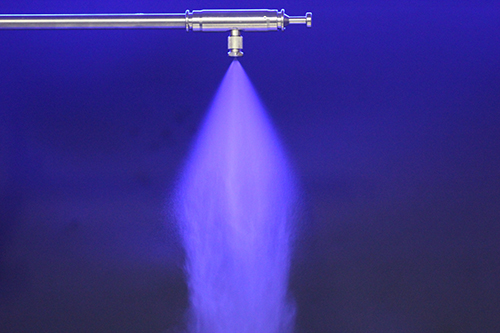

Orifice :
0.10mm / 0.004"
Spray angle :
45°
Flow rate :
0.035 lt/m
Droplet size :
< 3μ

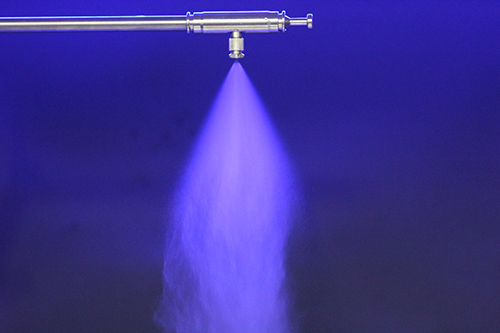

Orifice :
0.15mm / 0.006"
Spray angle :
55°
Flow rate :
0.050 lt/m
Droplet size :
< 4μ

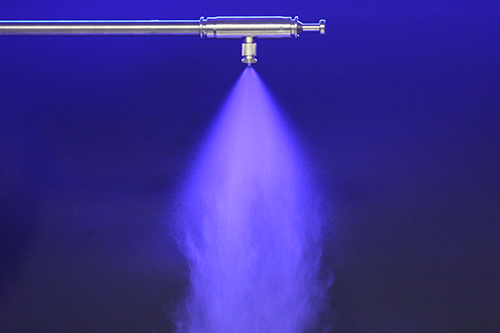

Orifice :
0.20mm / 0.008"
Spray angle :
65°
Flow rate :
0.075 lt/m
Droplet size :
< 5μ

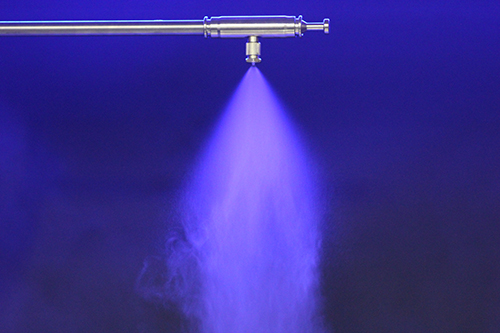

Orifice :
0.25mm / 0.010"
Spray angle :
70°
Flow rate :
0.090 lt/m
Droplet size :
< 5μ
Orifice :
0.30mm / 0.012"
Spray angle :
75°
Flow rate :
0.105 lt/m
Droplet size :
< 7μ

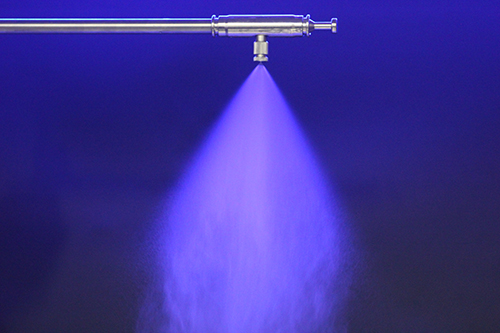

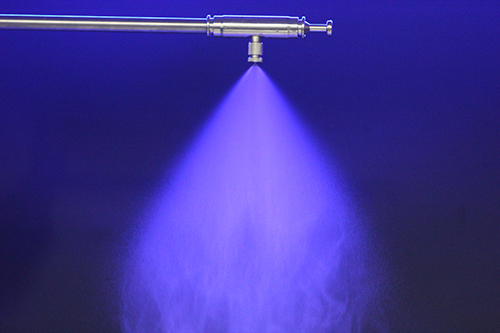

Orifice :
0.40mm / 0.016"
Spray angle :
80°
Flow rate :
0.150 lt/m
Droplet size :
< 9μ

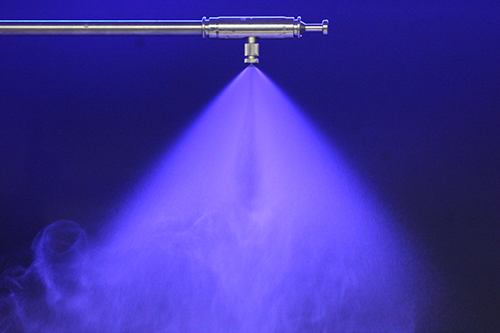

Orifice :
0.50mm / 0.020"
Spray angle :
85°
Flow rate :
0.180 lt/m
Droplet size :
< 11μ

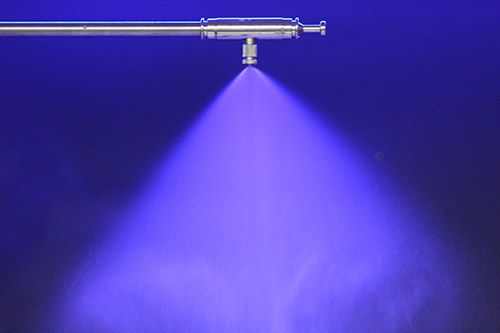

Orifice :
0.60mm / 0.024"
Spray angle :
90°
Flow rate :
0.220 lt/m
Droplet size :
< 13μ

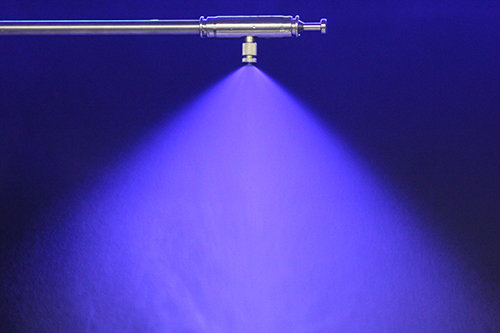

Orifice :
0.70mm / 0.028"
Spray angle :
95°
Flow rate :
0.250 lt/m
Droplet size :
< 15μ
FLOW CHART
LT/Min 40 Bar 50 Bar 60 Bar 70 Bar 80 Bar 90 Bar 100 Bar
0.10 mm 0.026 0.030 0.033 0.035 0.038 0.043 0.045
0.15 mm 0.034 0.038 0.043 0.050 0.055 0.058 0.061
0.20 mm 0.052 0.058 0.065 0.075 0.079 0.085 0.088
0.25 mm 0.062 0.072 0.082 0.090 0.095 0.101 0.105
0.30 mm 0.073 0.084 0.095 0.105 0.112 0.118 0.123
0.40 mm 0.103 0.120 0.135 0.150 0.160 0.170 0.178
0.50 mm 0.125 0.145 0.165 0.180 0.193 0.207 0.218
0.60 mm 0.160 0.180 0.190 0.220 0.240 0.260 0.280
0.70 mm 0.190 0.210 0.235 0.250 0.270 0.290 0.310
