Nozzle

FOGSIS HIGH PRESSURE NOZZLES PROVIDE ULTRA-FINE DROPLET-SIZE SPRAYS for;
- Evaporative Cooling
- Atomization
- Humidification

Water enters nozzle which feature 0,10mm to 0,70mm orifice to produce billions of ultra fine droplets.
At an operating pressure of 1000 psi, the resulting average drop-let size is far below 10 microns.



SS head with antidrip 10-24 NP SS head with antidrip 10-24 NP SS head with antidrip 10-24 NP
01-01000 - Nozzle 0.10 mm / 0.004" orifice 10-24 NP
01-01002 - Nozzle 0.20 mm / 0.008" orifice 10-24 NP
01-010025 - Nozzle 0.25 mm / 0.010" orifice 10-24 NP
01-01003 - Nozzle 0.30 mm / 0.012" orifice 10-24 NP
01-01004 - Nozzle 0.40 mm / 0.016" orifice 10-24 NP
01-01005 - Nozzle 0.50 mm / 0.020" orifice 10-24 NP
01-01006 - Nozzle 0.60 mm / 0.024" orifice 10-24 NP
01-01001 - Nozzle 0.15 mm / 0.006" orifice 10-24 NP
01.-01007 - Nozzle 0.70 mm / 0.028" orifice 10-24 NP
SS with antidrip 10-24 SS with antidrip 10-24 SS with antidrip 10-24
01-02000 - Nozzle 0.10 mm / 0.004" orifice 10-24
01-02001 - Nozzle 0.15 mm / 0.006" orifice 10-24
01-02002 - Nozzle 0.20 mm / 0.008" orifice 10-24
01-020025 - Nozzle 0.25 mm / 0.010" orifice 10-24
01-02003 - Nozzle 0.30 mm / 0.012" orifice 10-24
01-02004 - Nozzle 0.40 mm / 0.016" orifice 10-24
01-02005 - Nozzle 0.50 mm / 0.020" orifice 10-24
01-02006 - Nozzle 0.60 mm / 0.024" orifice 10-24
01-02007 - Nozzle 0.70 mm / 0.028" orifice 10-24
SS head with antidrip M5 NP SS head with antidrip M5 NP SS head with antidrip M5 NP
01-01000-M - Nozzle 0.10 mm / 0.004" orifice M5 NP
01-01001-M - Nozzle 0.15 mm / 0.006" orifice M5 NP
01-01002-M - Nozzle 0.20 mm / 0.008" orifice M5 NP
01-010025-M - Nozzle 0.25 mm / 0.010" orifice M5 NP
01-01003-M - Nozzle 0.30 mm / 0.012" orifice M5 NP
01-01004-M - Nozzle 0.40 mm / 0.016" orifice M5 NP
01-01005-M - Nozzle 0.50 mm / 0.020" orifice M5 NP
01-01006-M - Nozzle 0.60 mm / 0.024" orifice M5 NP
01-01007-M - Nozzle 0.70 mm / 0.028" orifice M5 NP
SS with antidrip M5 SS with antidrip M5 SS with antidrip M5
01-02000-M - Nozzle 0.10 mm / 0.004" orifice M5
01-02001-M - Nozzle 0.15 mm / 0.006" orifice M5
01-02002-M - Nozzle 0.20 mm / 0.008" orifice M5
01-020025-M - Nozzle 0.25 mm / 0.010" orifice M5
01-2003-M - Nozzle 0.30 mm / 0.012" orifice M5
01-02004-M - Nozzle 0.40 mm / 0.016" orifice M5
01-02005-M - Nozzle 0.50 mm / 0.020" orifice M5
01-02006-M - Nozzle 0.60 mm / 0.024" orifice M5
01-02007-M - Nozzle 0.70 mm / 0.028" orifice M5


1/8"  SS.AD. 1/8"  SS.AD. 1/8"  SS.AD.
01-04000 - 1/8" SS Nozzle 0.10 mm / 0.004" orifice
01-04001 - 1/8" SS Nozzle 0.15 mm / 0.006" orifice
01-04002 - 1/8" SS Nozzle 0.20 mm / 0.008" orifice
01-040025 - 1/8" SS Nozzle 0.25 mm / 0.010" orifice
01-04003 - 1/8" SS Nozzle 0.30 mm / 0.012" orifice
01-04004 - 1/8" SS Nozzle 0.40 mm / 0.016" orifice
01-04005 - 1/8" SS Nozzle 0.50 mm / 0.020" orifice
01-04006 - 1/8" SS Nozzle 0.60 mm / 0.024" orifice
01-04007 - 1/8" SS Nozzle 0.70 mm / 0.028" orifice

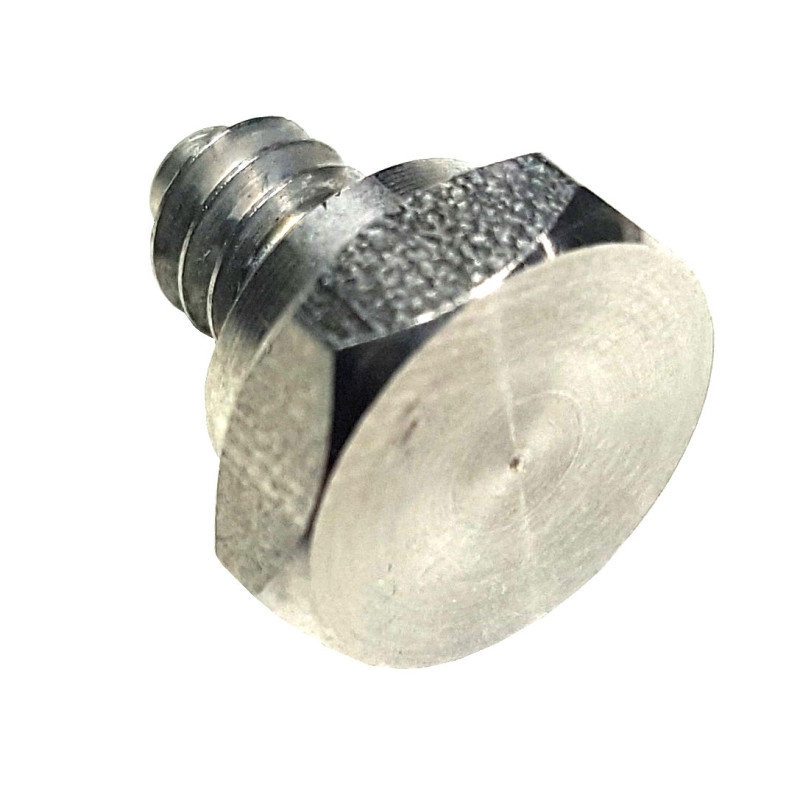

01-03001 - Nozzle plug brass UNC 10-24
01-03002 - 303 SS nozzle plug UNC 10-24
01-03003 - Nozzle plug brass M5
01-03004 - 303 SS nozzle plug M5

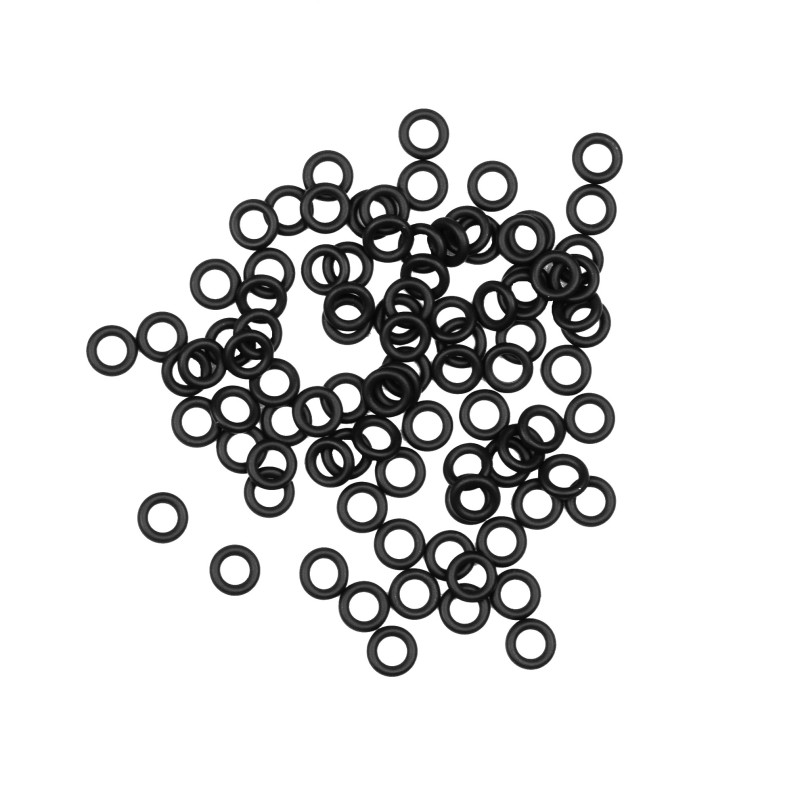

01-03005 - Black O ring for nozzle Box of 100

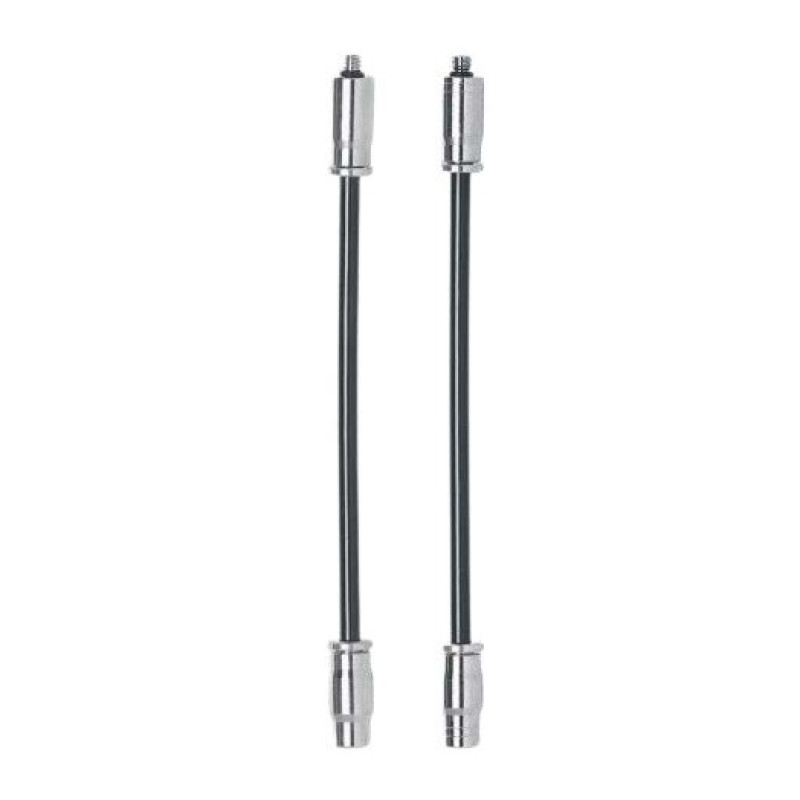

01-03006 - Nozzle 50mm extention UNC 10-24
01-03008 - Braun O ring for nozzle VITON Box of 100

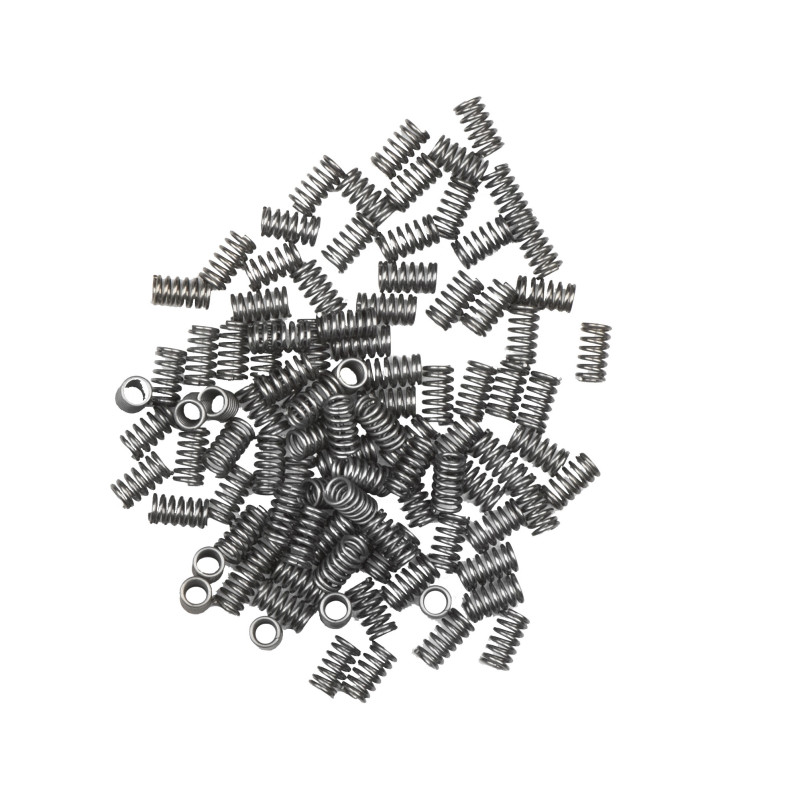

01-03009 - Spring for antidrip adaptor 100 PSI Box of 100
01-03010 - Spring for antidrip adaptor 50 PSI Box of 100

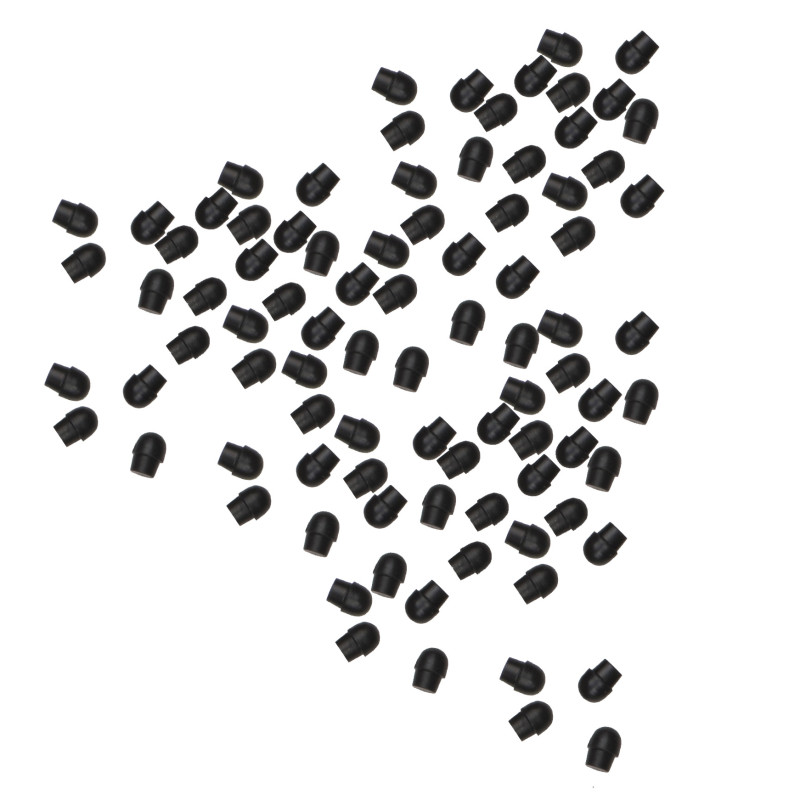

01-03011 - Black ball for antidrip adaptor Box of 100

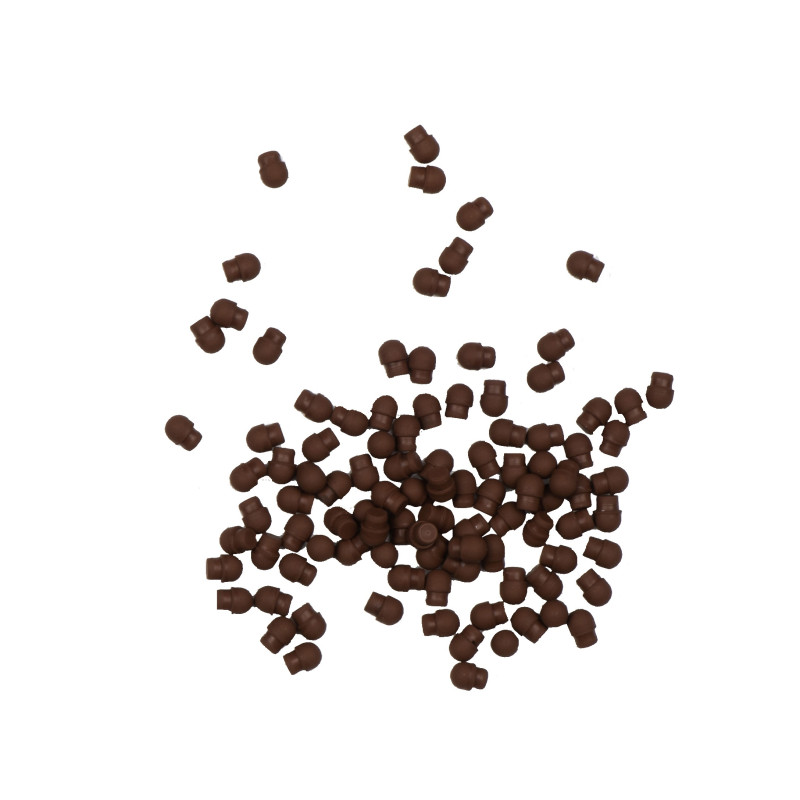

01-03012 - Braun ball for antidrip adaptor VITON Box of 100
01-03013 - 0,5mm discharge nozzle 1l/m white/red
01-03014 - 0,7mm discharge nozzle 2.2l/m black/white
01-03015 - 1,0mm discharge nozzle 3.5l/m white
01-03016 - 1,1mm discharge nozzle 5.3l/m black
01-03017 - 1,2mm discharge nozzle 7.3l/m red
01-03018 - 1,3mm discharge nozzle 8.3l/m yellow
01-03019 - 1,4mm discharge nozzle 9.6l/m green
01-03020 - 1,5mm discharge nozzle 11.3l/m pink
01-03021 - 1,6mm discharge nozzle 12.2l/m orange
01-03022 - 1,7mm discharge nozzle 14l/m blue

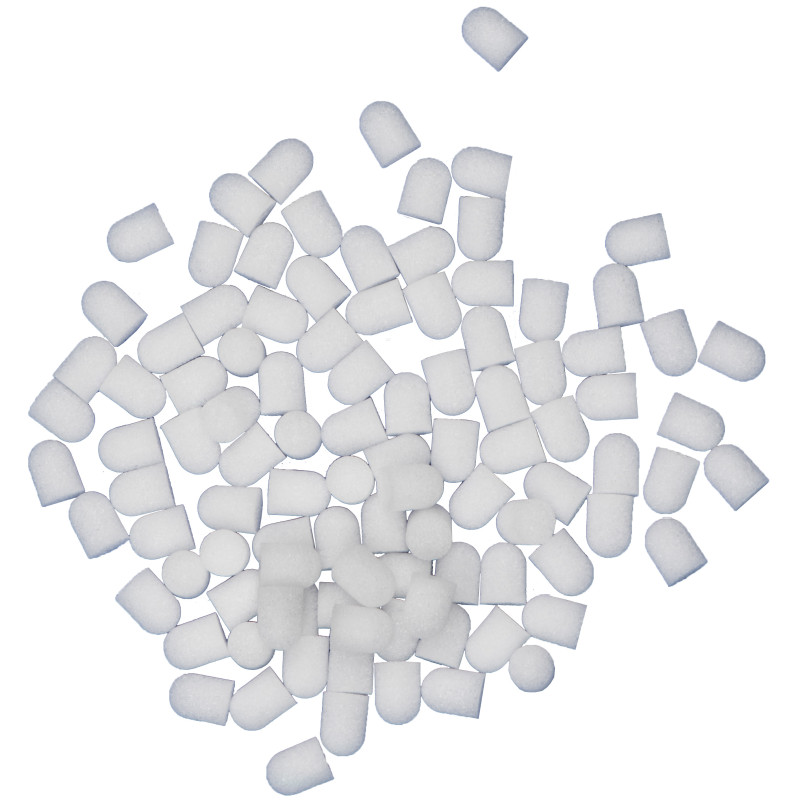

01-03023 - Spare filter for 1/8" nozzles Box of 100

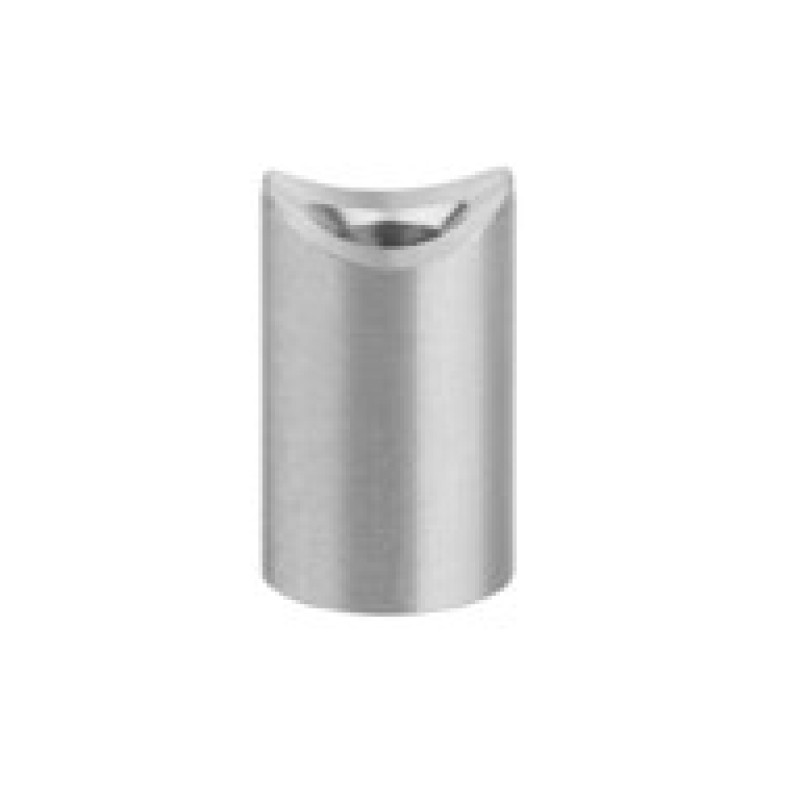

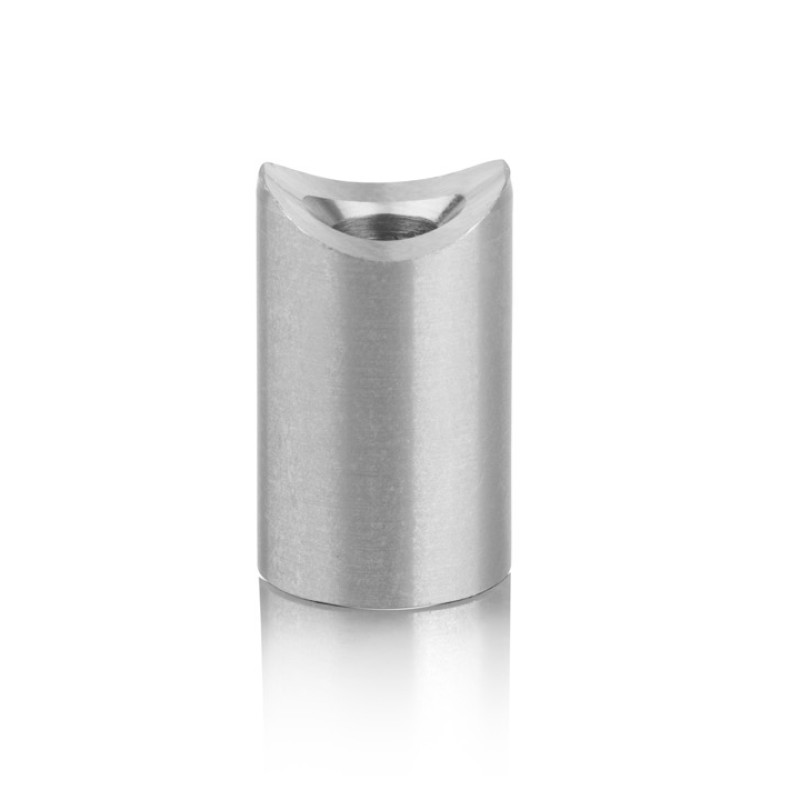

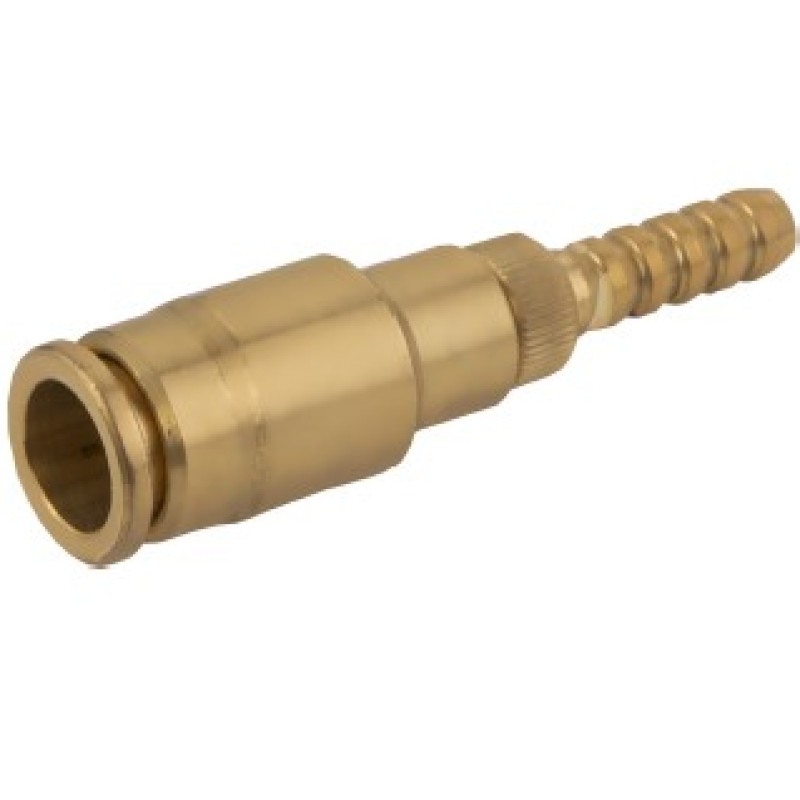

01-03024 - Spigot for 1/8" nozzle for 10&12mm SS tubing
01-03025 - Spigot for M5 nozzle for 10&12mm SS tubing
01-03026 - Spigot for UNC 10-24 nozzle

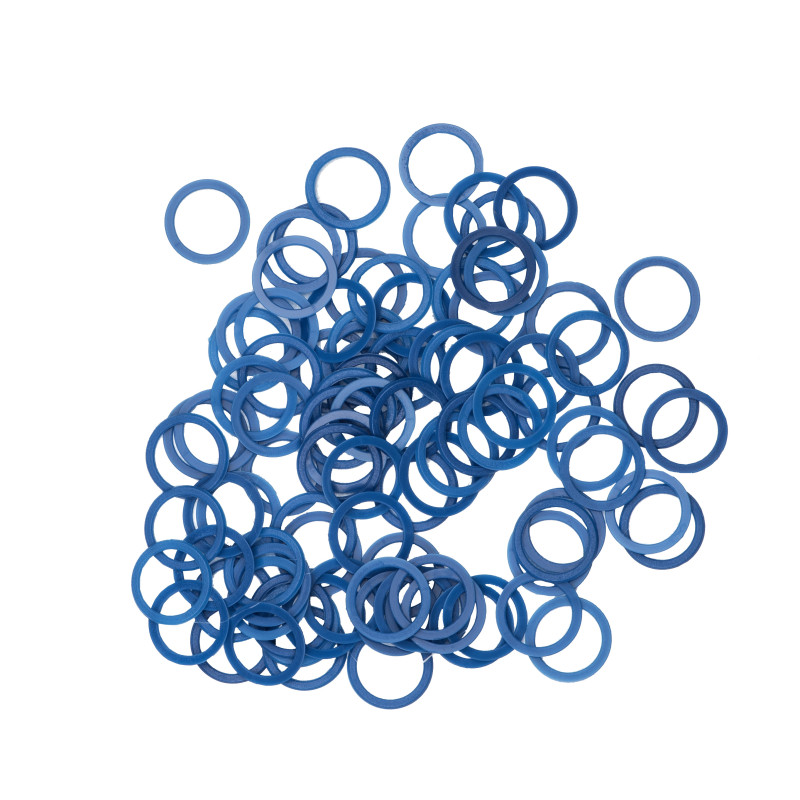

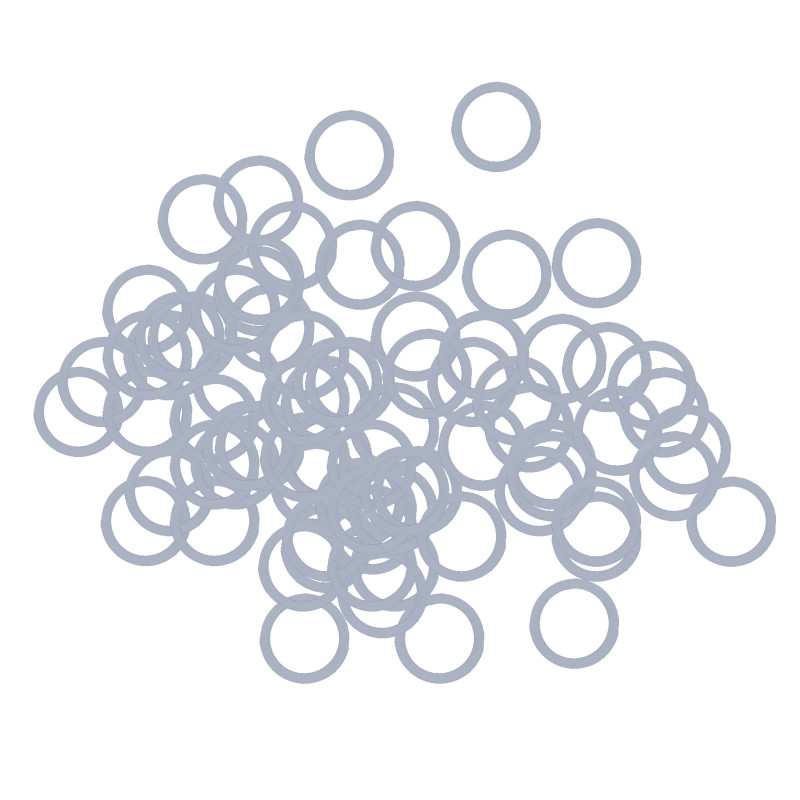

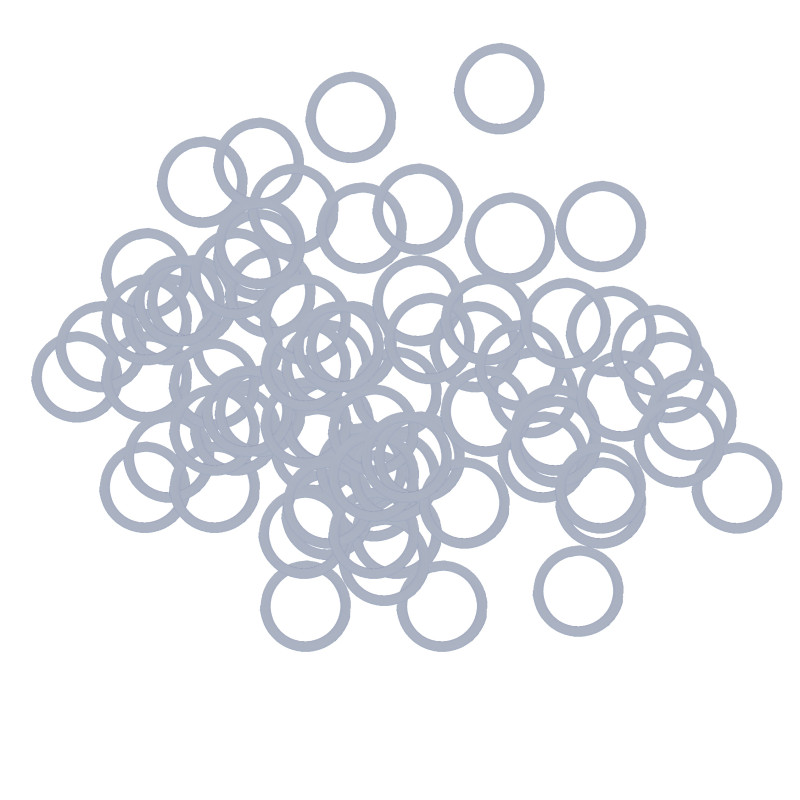

01-03027 - Delrin washer for 3/8" box of 100 pcs
01-03028 - Delrin washer for 1/2" box of 100 pcs
01-03029 - Delrin washer for 10mm box of 100 pcs
01-03030 - Delrin washer for 12mm box of 100 pcs

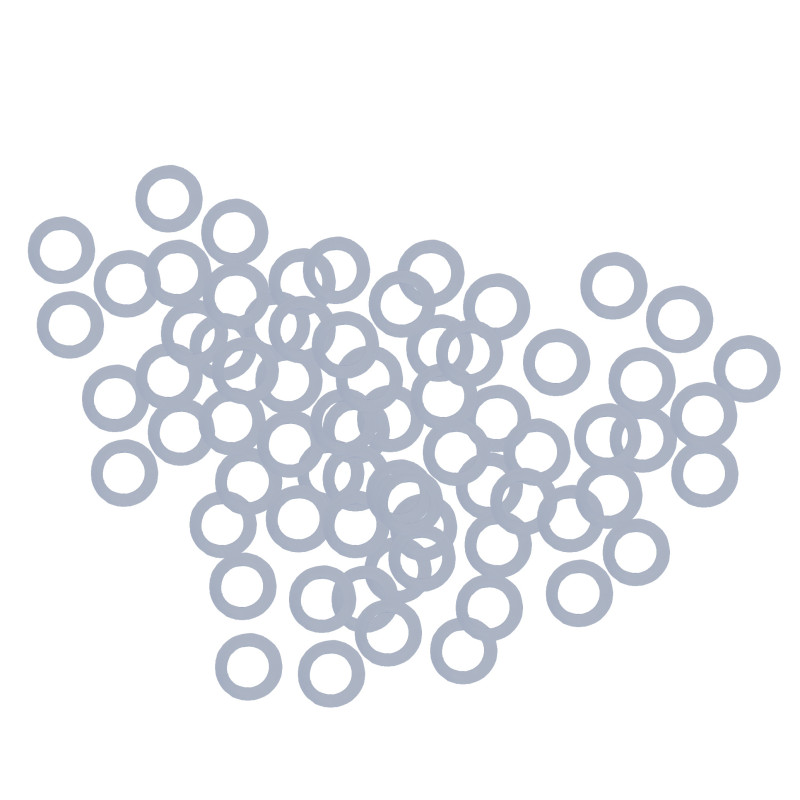

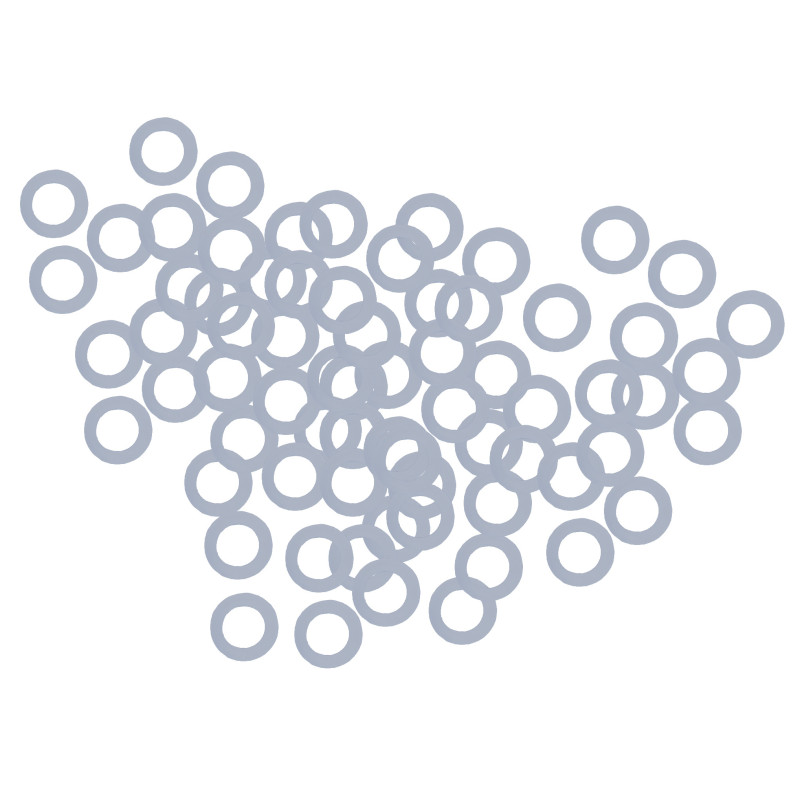

01-03031 - White washer for Antidrip 10-24
01-03032 - White washer for Antidrip M5

➩ Please contact us for Ceramic orificeWhite washerViton O-ring and ball nozzle types.
